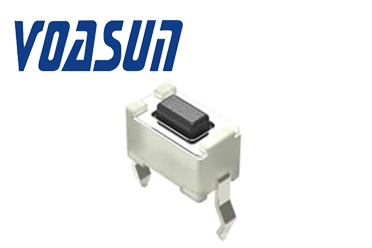

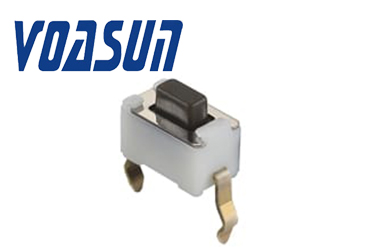

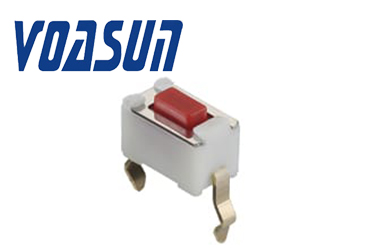

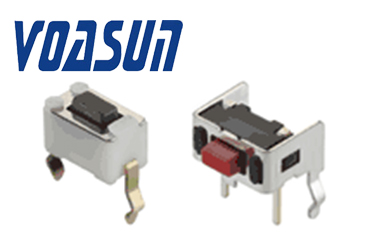

Top push type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 12V DC) |
初期接觸電阻 |
按鈕顏色 |
高度 |
尺寸(W×D×H) |
|
SKHLAAA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
50,000 cycles |
500mΩ max. |
Black |
4.3mm |
6.0×3.5×4.3mm |
|
SKHLACA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
50,000 cycles |
500mΩ max. |
Dark gray |
4.3mm |
6.0×3.5×4.3mm |
|
SKHLAJA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
30,000 cycles |
500mΩ max. |
Red |
4.3mm |
6.0×3.5×4.3mm |
|
SKHLABA010 |
 |
按入 |
0.98N |
Top push |
0.25mm |
50,000 cycles |
500mΩ max. |
Black |
5mm |
6.0×3.5×5.0mm |
|
SKHLADA010 |
 |
按入 |
1.57N |
Top push |
0.25mm |
50,000 cycles |
500mΩ max. |
Dark gray |
5mm |
6.0×3.5×5.0mm |
|
SKHLAKA010 |
 |
按入 |
2.55N |
Top push |
0.25mm |
30,000 cycles |
500mΩ max. |
Red |
5mm |
6.0×3.5×5.0mm |

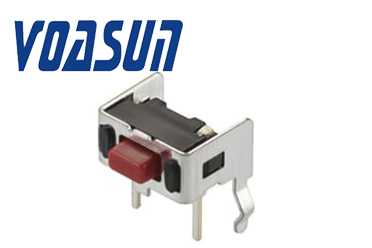

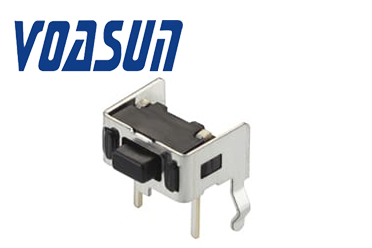

Side push type
|
產品編號 |
照片 |
型 |
動作力 |
操作方向 |
行程 |
操作壽命(5mA 5V DC) |
初期接觸電阻 |
按鈕顏色 |
端子長度 |
尺寸(W×D×H) |
|
SKHLLAA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
50,000 cycles |
500mΩ max. |
Black |
l=3.5mm
(PC board t: 1.6) |
7.3×6.72×4.3mm |
|
SKHLLBA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
50,000 cycles |
500mΩ max. |
Dark gray |
l=3.5mm
(PC board t: 1.6) |
7.3×6.72×4.3mm |
|
SKHLLFA010 |
 |
按入 |
2.55N |
Side push |
0.25mm |
30,000 cycles |
500mΩ max. |
Red |
l=3.5mm
(PC board t: 1.6) |
7.3×6.72×4.3mm |
|
SKHLLCA010 |
 |
按入 |
0.98N |
Side push |
0.25mm |
50,000 cycles |
500mΩ max. |
Black |
l=2.5mm
(PC board t: 1.0) |
7.3×6.72×4.3mm |
|
SKHLLDA010 |
 |
按入 |
1.57N |
Side push |
0.25mm |
50,000 cycles |
500mΩ max. |
Dark gray |
l=2.5mm
(PC board t: 1.0) |
7.3×6.72×4.3mm |
SKHL系列用途：
Energy / Industrial:工業設備
Healthcare:健康器具, 分析 檢查器具
Home:辦公設備
Audio / TV:畫面, 音響, 專業音響
Automotive:汽車導航儀 汽車音響 HVAC
