只感應單向磁場，通常南極（S）靠近時，輸出低電平，當南極(S)離開時，芯片輸出狀態
翻轉為高電平，北極（N）感應始終是輸出高電平。
典型特征：工作溫度范圍廣、靈敏度高、抗干擾能力強
典型應用：磁編碼器、尾門電機、座椅電機
霍爾集成電路選型表
| 產品型號 | 磁開關點 | 封裝形式 | 輸出電流 | 工作電壓范圍 | 工作溫度范圍 |
|---|---|---|---|---|---|
| GH1423 | ±40G | TO-94 | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ |
| GH1428 | ±20G | TO-94 | 25mA | 3.8Vdc~24.0Vdc | -40℃~125℃ |
| GH1881 | ±20G | TO-92S | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ |
| GH1120 | ±20G | SOT-23-3L/SOT-23 | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ |
| GH1122 | ±25G | TO-92S | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ |
| GH1121 | ±30G | SOT-23-3L | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ |
| GH141F | ±40G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ |
| GH140A | ±40G | TO-92S | 40mA | 4.5Vdc~24.0Vdc | -40℃~150℃ |
| Y3413 | ±45G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ |
| Y3461 | ±45G | TO-92S | 50mA | 3.8Vdc~60.0Vdc | -40℃~150℃ |
| GH1511A | ±45G | SOT-89B | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ |
| GH1413 | ±60G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ |
| GH3141 | ±65G | TO-92S | 50mA | 3.8Vdc~45.0Vdc | -40℃~150℃ |
| GH1187 | ±100G | TO-92S | 40mA | 3.8Vdc~30.0Vdc | -40℃~125℃ |
| GH1230 | +30/+20G | TO-92S/SOT-23-3L | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ |
感應南極（S）北極（N）磁場的變化，在南極（S）磁場和北極（N）磁場下，芯片均感應輸出高低電平變化信號。
典型特征：靈敏度高、抗干擾能力強
典型應用：智能三表、空氣凈化器
| 產品型號 | 磁開關點 | 封裝形式 | 輸出電流 | 工作電壓范圍 | 工作溫度范圍 | |
|---|---|---|---|---|---|---|

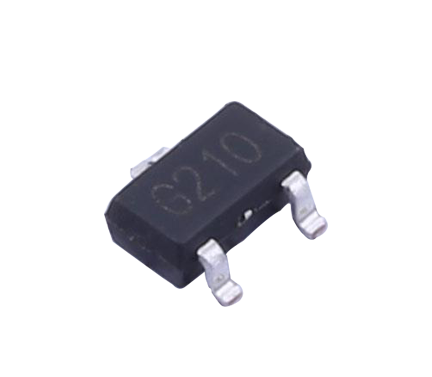

| GH1210 | +50/+30G | TO-92S/SOT-23-3L | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ | |
| GH1131 | +60/+50G | TO-92S | 40mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1441A | +100/+60G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1443A | +120/+70G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1220 | +120/+90G | TO-92S/SOT-23 | 25mA | 3.5Vdc~24.0Vdc | -40℃~125℃ | |
| GH1104L | +150/+100G | TO-92S | 50mA | 4.5Vdc~24.0Vdc | 50mA-40℃~150℃ | |
| GH1104E | +150/+100G | SOT-23-3L | 50mA | 4.5Vdc~24.0Vdc | -40℃~85℃ | |
| GH143F | +150/+100G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1132 | +150/+100G | TO-92S | 40mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1543A | +150/+100G | SOT-89B | 50mA | 3.8Vdc~30.0Vd | -40℃~150℃ | |
| GH1106 | +300/+200G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1449A | +350/+275G | TO-92S | 50mA | 3.8Vdc~30.0Vdc | -40℃~150℃ | |
| GH1248 | ±16/±10G | TO-92S/SOT-23-3L | 5mA | 2.5Vdc~5.5Vdc | -40℃~85℃ | |
| GH1250 | ±35/±15G | TO-92S/SOT-23-3L | 5mA | 2.5Vdc~5.5Vdc | -40℃~85℃ | |
| GH1253 | ±16/±10G | TO-92S/SOT23-3L | 5mA | 2.5Vdc~5.5Vdc | -40 ℃~ 85 ℃ |
